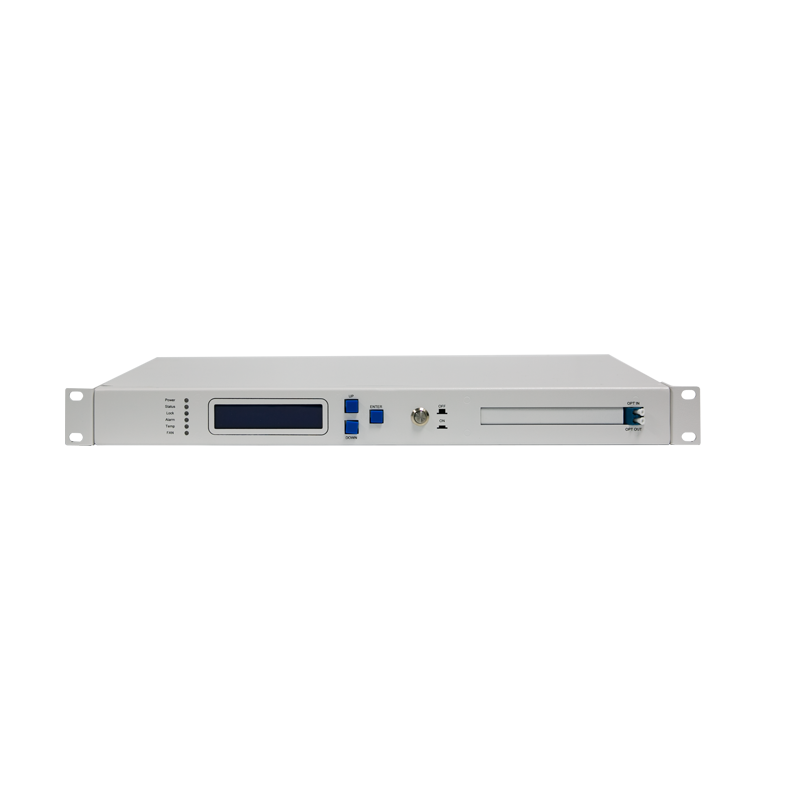

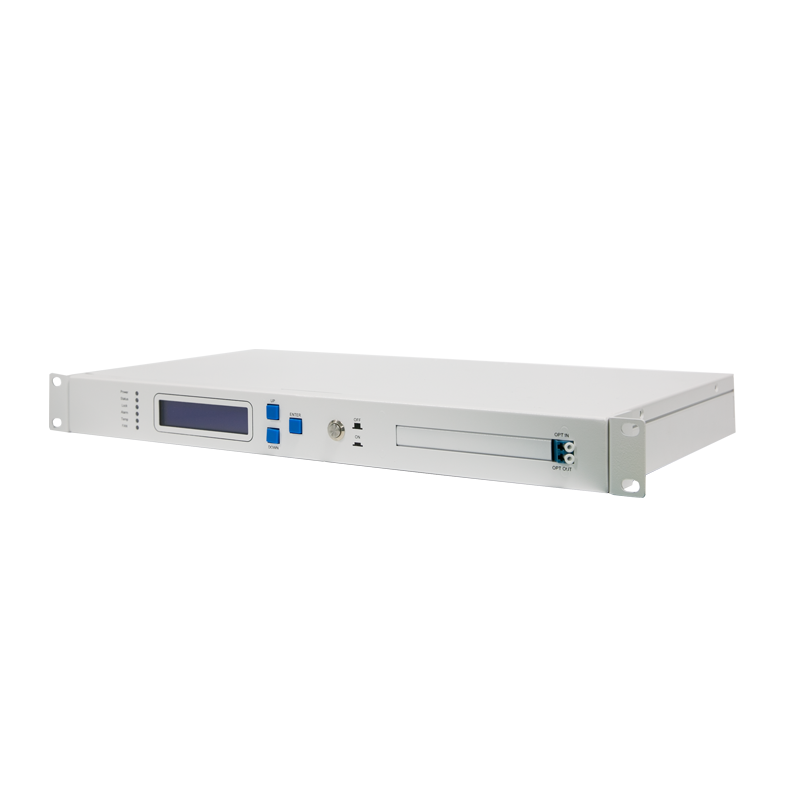

This product is a standard 1U Erbium-doped fiber amplifier designed for DWDM optical transmission system to compensate for optical power loss on the line and extend the signal transmission distance. Its core part uses the Pump laser with high reliability. The unique optical path design ensures excellent optical path index. It can be used as booster amplifier, line amplifier or pre-amplifier according to different application.
|
Description |
Min |
Typ |
Max |
Unit |
Note |
|
Input Optical Wavelength |
1528 |
- |
1565 |
nm |
customize |
|
Input Power |
-33 |
- |
+12 |
dBm |
|
|
Output Power |
10 |
- |
24 |
dBm |
|
|
Gain |
9 |
|
33 |
dB |
|
|
Noise Figure |
- |
5 |
6 |
dB |
|
|
Gain Flatness |
- |
1.5 |
- |
dB |
|
|
- |
0.1 |
- |
dB |
|
|
|
Polarization-Dependent Gain |
- |
- |
0.5 |
dB |
|
|
PMD |
- |
- |
0.5 |
ps |
|
|
Return Loss |
45 |
- |
- |
dB |
|
|
Working Temperature |
-5 |
- |
55 |
dB |
|
|
Storage Temperature |
-40 |
- |
85 |
dB |
|
|
Power Consumption |
- |
- |
20 |
W |
|
|
Mounting |
19’’ Rack 1U |
- |
|
||
|
Product Size |
438*234*44 |
mm |
|
||
|
Connector Type |
LC/UPC |
- |
customize |
||
|
Supply voltage |
AC100~265 or DC 35~65 |
V |
|||
