This product is a standard 1U Erbium-doped fiber amplifier designed for DWDM optical transmission system to compensate for optical power loss on the line and extend the signal transmission distance. Its core part uses the Pump laser with high reliability. The unique optical path design ensures excellent optical path index. It can be used as booster amplifier, line amplifier or pre-amplifier according to different application.
uProvide OEM customized services according to customer requirements.
uLow noise figure, low power consumption, power consumption < 20W.
uWide operating wavelength range:1528nm~1565nm.
uStandard RJ-45 Network management interface.

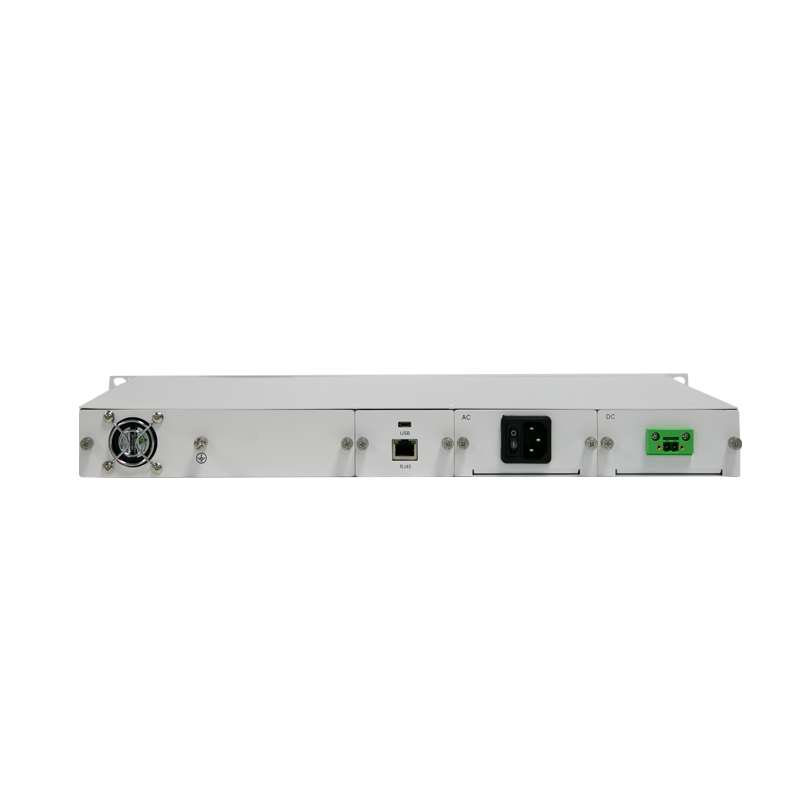

uDual power supply design, one button pull, can be replaced online.

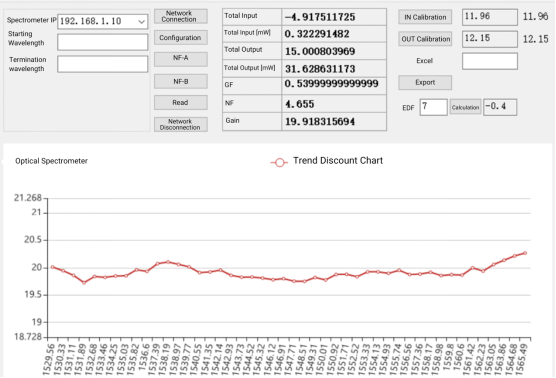

uGain flatness≤±1dB.

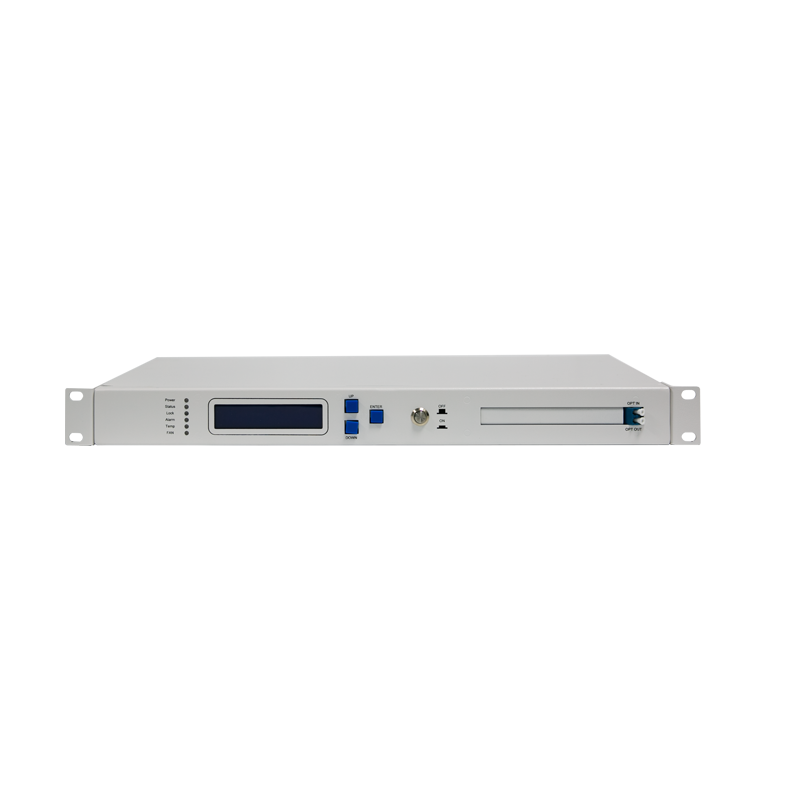

uIndependent LCD display, convenient monitoring equipment working status.

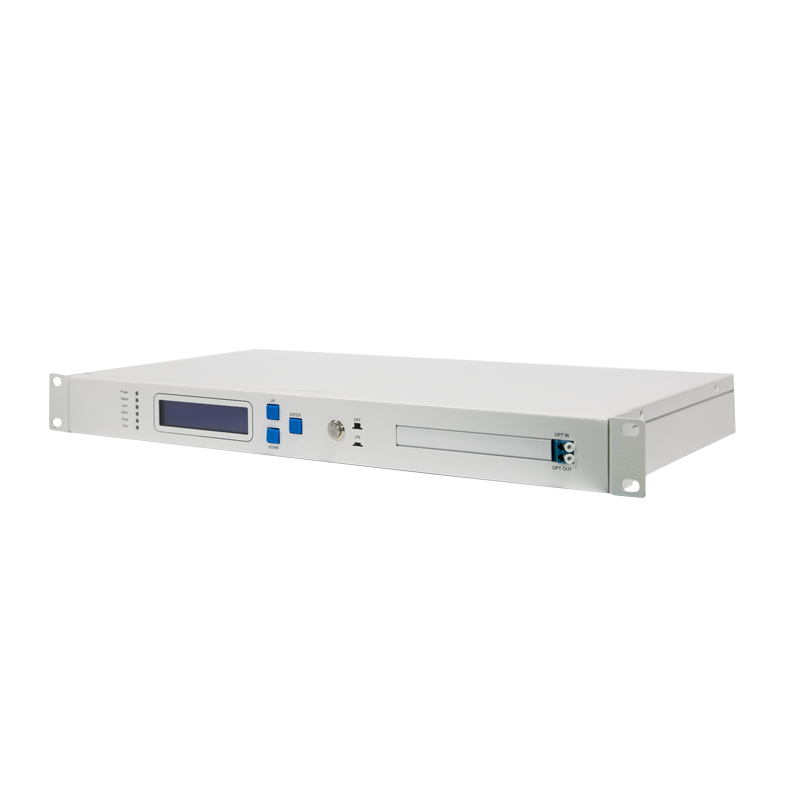

uStandard 1U rack mounted, easy to install and maintain.
u Telecom
u Data Center
u 5G Network
u Long Distance Network
u DWDM System
|
Description |
Min |
Typ |
Max |
Unit |
Note |
|
Input Optical Wavelength |
1528 |
- |
1565 |
nm |
customize |
|
Input Power |
-33 |
- |
+12 |
dBm |
|
|
Output Power |
10 |
- |
24 |
dBm |
|
|
Gain |
9 |
|
33 |
dB |
|
|
Noise Figure |
- |
5 |
6 |
dB |
|
|
Gain Flatness |
- |
1.5 |
- |
dB |
|
|
Output Power Stability |
- |
0.1 |
- |
dB |
|
|
Polarization-Dependent Gain |
- |
- |
0.5 |
dB |
|
|
PMD |
- |
- |
0.5 |
ps |
|
|
Return Loss |
45 |
- |
- |
dB |
|
|
Working Temperature |
-5 |
- |
55 |
dB |
|
|
Storage Temperature |
-40 |
- |
85 |
dB |
|
|
Power Consumption |
- |
- |
20 |
W |
|
|
Mounting |
19’’ Rack 1U |
- |
|
||
|
Product Size |
438*234*44 |
mm |
|
||
|
Connector Type |
LC/UPC |
- |
customize |
||
|
Supply voltage |
AC100~265 or DC 35~65 |
V |
|||
