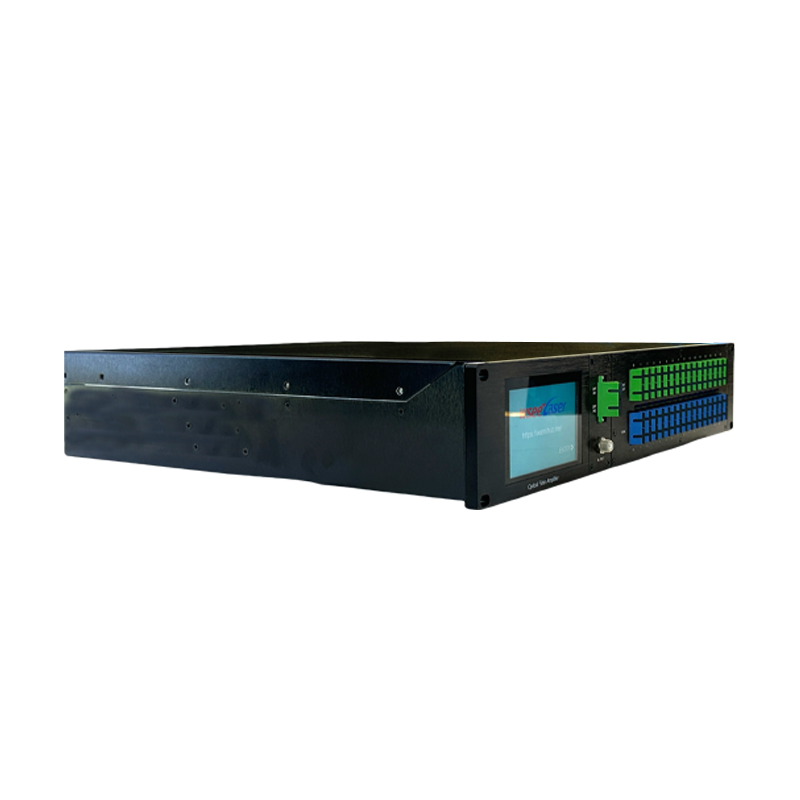

The 077G (77GEYA2) series is a high-performance 2U high-power erbium-ytterbium co-doped fiber amplifier (EDFA) independently developed by Shandong Wanshuo Optoelectronic. Adopting advanced erbium-ytterbium co-doped double-clad fiber technology and high-efficiency low-noise pump lasers, it delivers industry-leading total output power up to 41dBm and supports flexible 16-64 port configurations, making it the ideal solution for large-scale CATV FTTH deployment in medium and large cities.
It features an innovative touch screen design (no physical buttons) with a larger display area and more intuitive operation, plus adjustable backlight time. Equipped with a complete audible and visual alarm system with dual indicator and buzzer alerts, and a modular design for easy maintenance and management. It supports standard WEB network management and SNMP protocol, with optional mobile phone remote monitoring and timing control functions for intelligent operation and maintenance. The device provides multiple optional functions: 2-port optical switch (OSW) for automatic optical path protection, built-in 1550nm direct modulation optical transmitter, RF signal monitoring, and WDM module for triple play convergence of CATV, data and voice services.

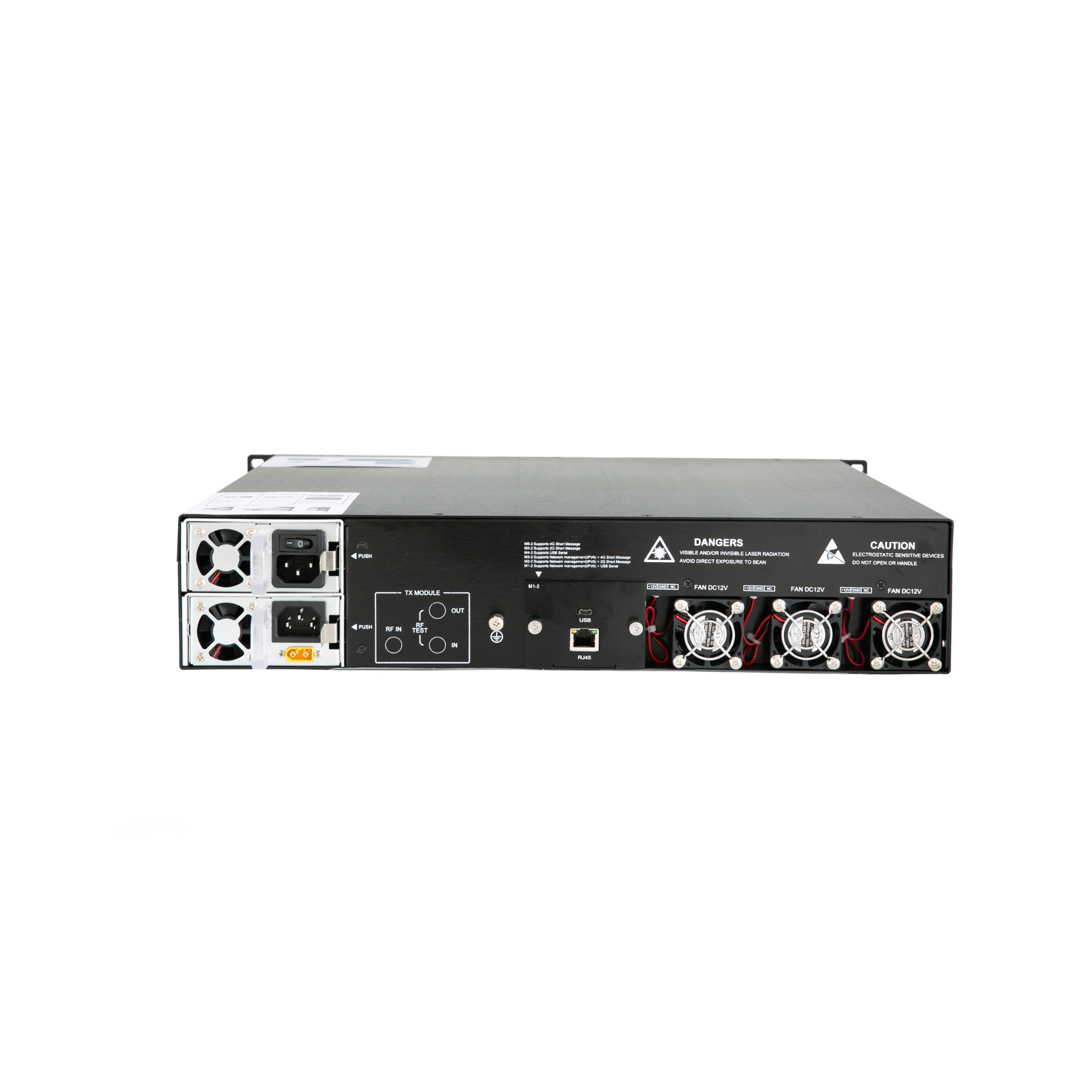

Adopting a one-button pull-out dual hot-swappable power supply design with wide voltage input (AC 90-265V, optional DC 36-72V / UPS backup), it ensures carrier-class 99.999% reliability for 7×24-hour uninterrupted operation. It is the core equipment for building high-stability, large-capacity CATV optical transmission networks.
|
Category |
Parameter |
Details |
|
Optical Parameters |
CATV Operating Wavelength |
1545~1560nm (center 1550nm) |
|
|
PON OLT Operating Wavelength |
1270/1310/1490/1577nm |
|
|
CATV Input Optical Power Range |
-10~+10dBm (recommended: 0~+3dBm) |
|
|
Maximum Total Output Power |
41dBm |
|
|
Output Power Stability |
±0.1dB |
|
|
Noise Figure |
≤6dB (@ 0dBm input, 1550nm) |
|
|
Return Loss |
≥45dB (input & output) |
|
|
Output Ports |
SC: 16-64 ports; LC: 16-64 ports (customizable) |
|
|
Output Power per Port |
13~23dBm |
|
|
Optical Connector Type |
SC/APC, SC/PC, LC/APC, LC/PC (customized) |
|
Optional Functions |
Optical Switch (OSW) |
2 input ports, insertion loss ≤1.3dB, switching time <0.5s |
|
|
Direct Modulation Transmitter |
1550nm, input level 75-90dBuV, output power 3/5/7/10dBm |
|
|
RF Monitoring (Rx TEST) |
Output level ≥56dBuV (simulation: +2~-7dBm; digital: +2~-10dBm) |
|
|
WDM Module |
Built-in FWDM for triple play convergence |
|
|
Mobile Remote Monitoring & Timing Control |
Supported |
|
RF Parameters |
C/N |
≥50dB (tested according to GD/J115-2020) |
|
|
C/CTB |
≥65dB |
|
|
C/CSO |
≥65dB |
|
General Parameters |
Display |
Touch screen (no physical buttons) |
|
|
Management Interface |
RJ45 (WEB + SNMP v1/v2/v3) |
|
|
Power Supply |
Dual hot-swappable: AC 90-265V 50/60Hz; optional DC 36-72V / UPS backup |
|
|
Power Consumption |
<150W |
|
|
Operating Temperature |
-5℃ ~ +50℃ |
|
|
Operating Humidity |
≤95% (non-condensing) |
|
|
Storage Temperature |
-40℃ ~ +80℃ |
|
|
Product Dimensions (W×D×H) |
480×428×89mm (19-inch 2U, excluding handle) |
|
|
Package Size |
638×638×262mm |
