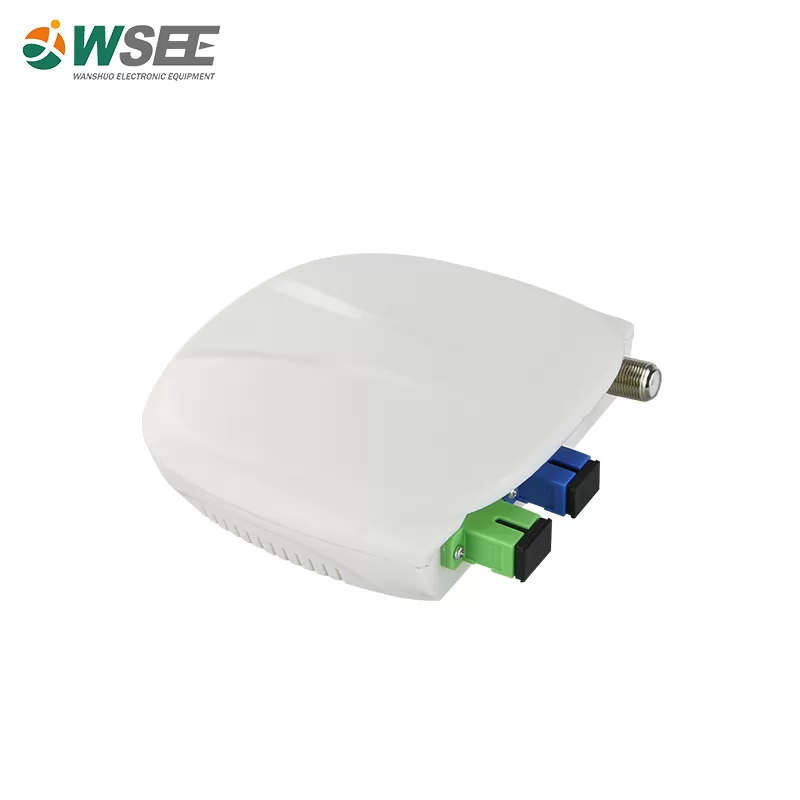

WS-OR19-PW FTTH Optical Receiver

WS-FTTH-OR19-PW  is a passive optical receiver specially designed for realizing the integration of three networks, It can realize the function of analog or digital signal fiber transmission into households. This device is designed without power supply and power consumption, only saves energy, but also meets the demand of fiber to the home.

Share:
  • Feature
  • Parameter
  • Diagram

● Maximum range of input optical power:+2dBm~-10dBm

● No power supply,no power consumption

● Adopt WDM wavelength division multiplexing technology,realize single-fiber home access,It has the function of integrating telecommunication voice

● CATV and internet into one fiber to transfer

● SC/APCTM or SC/PC, imperial RF interface (customizable according to customer requirements)

● Small and compact structure and convenient installation and use

Product number

WS-FTTH-OR19-PW

Received wavelength

1200~1600nm&1550nm

Input optical power

+2dBm~-10dBm

Light reflection loss

>45 dB

Optical connector form

FC/APC&SC/APC&FC/PC&SC/PC

Frequency Range

47~1006 MHz

In-band flatness

±1dB@47~1006MHZ

RF output reflection

≥16dB@ 47~550MHz;≥14dB@550~1006 MHz

Output level

60±1dBuV(Pin=0dBm)

RF output impedance

75Ω

C/N(Note1)

≥51dB

CTB (Note 1)

≥65dB

CSO (Note 1)

≥62dB

Operating temperature

-20℃ ~+45℃

Package Size

315*242*110mm(10 set)
