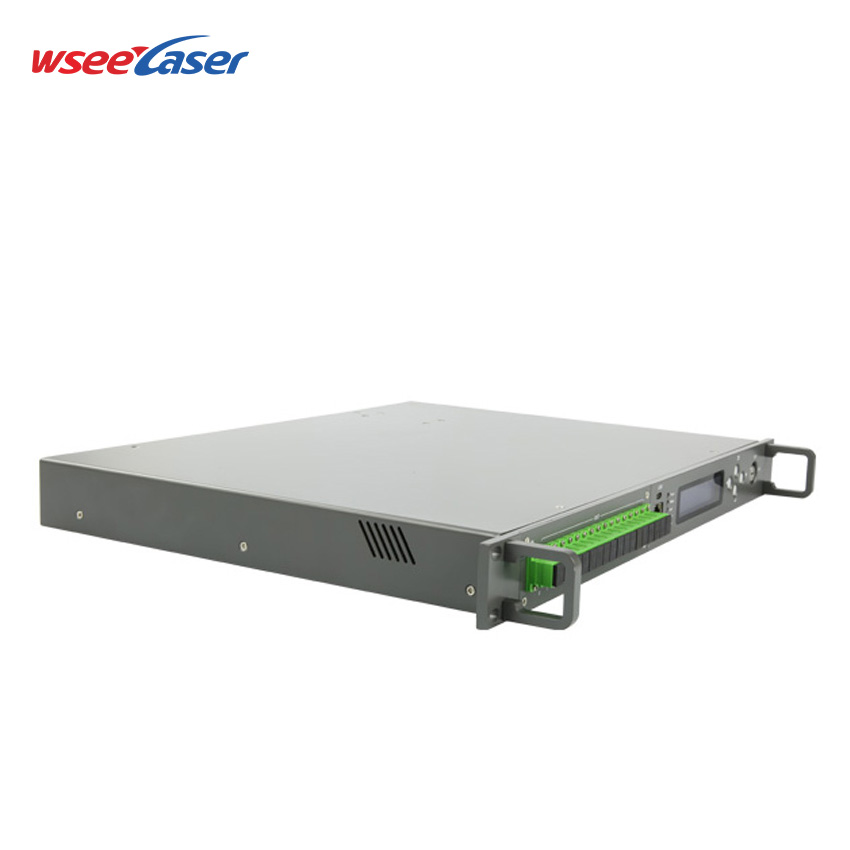

16 Ports 1550nm Er/Yb Co-doped Optical Amplifier

The WS-51EYAxx series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths). It provides a flexible, low-cost solution for large- scale FTTH coverage of CATV systems in large and medium-sized cities. WS-51EYAxx can achieve single-wavelength cable TV transmission, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.


Share:
  • Feature
  • Parameter

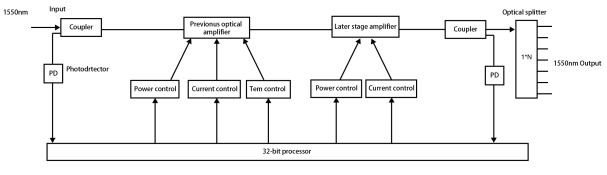

  • Diagram
  • Erbium co-doped double-clad fiber technology;

  • Built-in low-noise preamplifier eliminates the need for EDFA cascading, greatly reducing system CNR and MER degradation;

  • Perfect network management interface, in line with SNMP network management protocol;

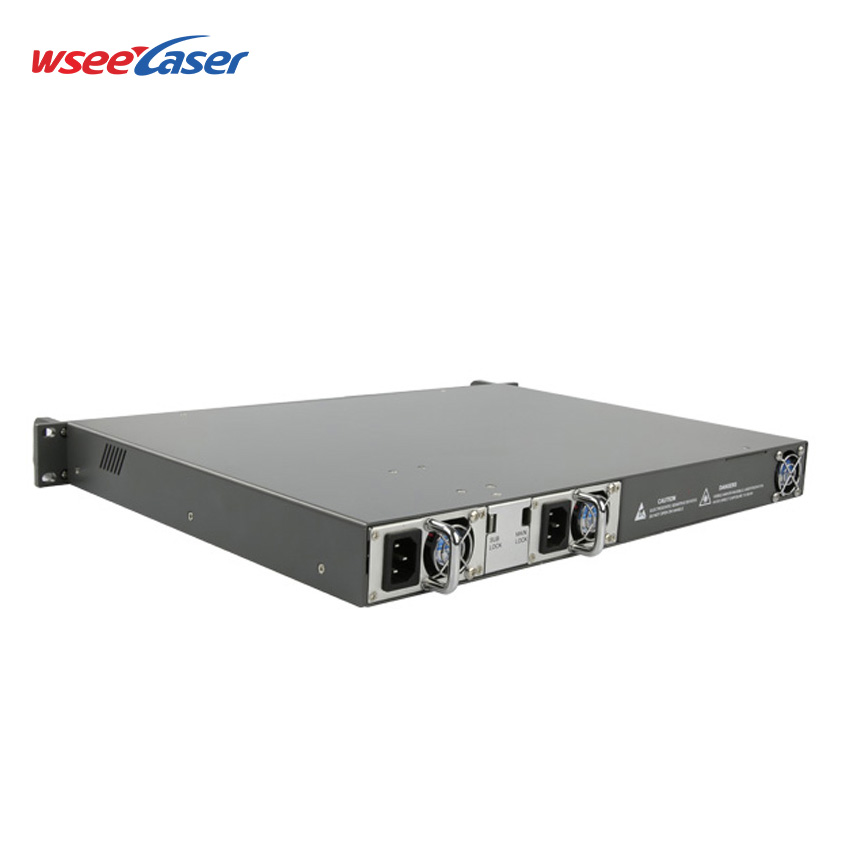

  • Adopts a mature dual-power hot backup structure dedicated to servers, and cooperates with a microcomputer-controlled intelligent temperature control system to effectively improve system reliability;

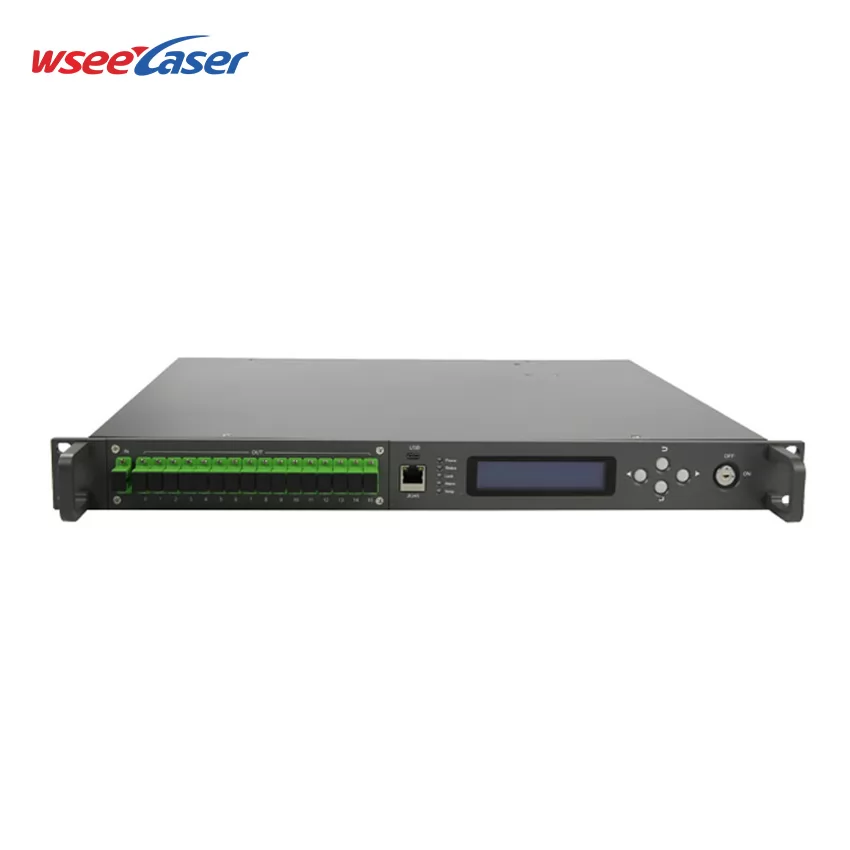

  • The front panel indicator monitors and instructs the operating status of the equipment parameters in real time. Easy to find problems in time;

  • Output port optional: SC connector 4 ~ 16 optional; LC connector 8 ~ 32 optional, optional WDM;

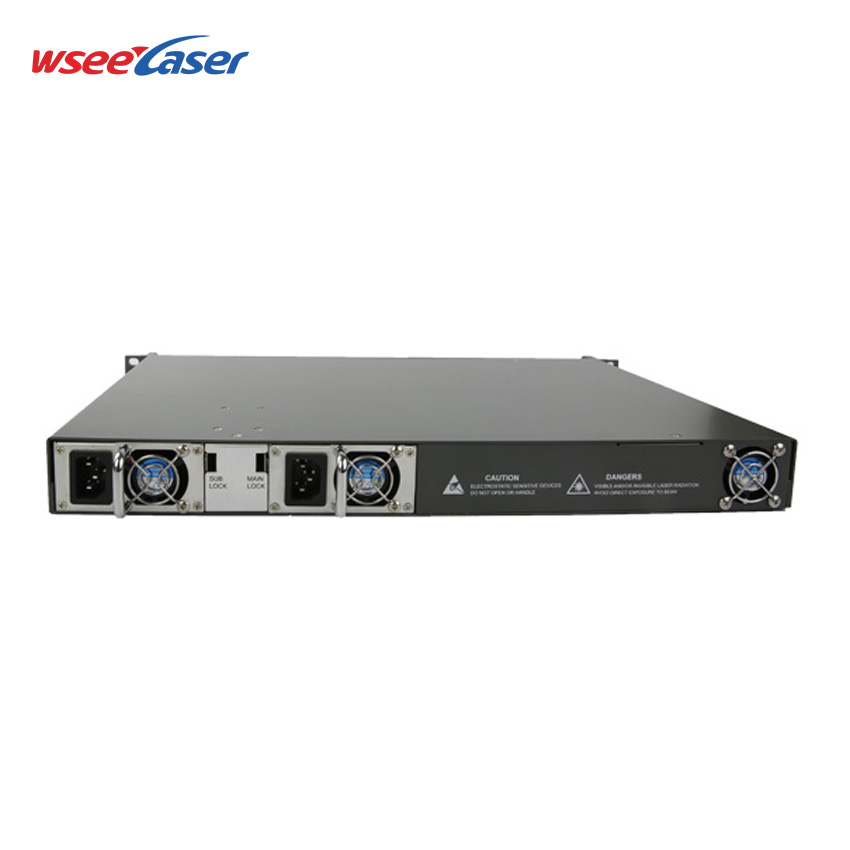

  • The back panel can be flexibly removed and replaced according to the number of output ports;


Technical parameter                 WS-51EYAxx

Wavelength

1535-1565nm

Input power range

-5dBm~+10dBmnormal input +3dBm

Output optical power

26dBm~37dBm

Optical power stability

±0.1dBm

Noise figure

≤ 5.0dBPin=0dB

Input return loss

≥ 45dB

Output return loss

≥ 45dB

C/N

≥ 50dB

C/CTB

≥ 63dB

C/CSO

≥ 63dB

Optical connector

SC/APCSC/PCLC/APCLC/PC

Supply voltage

AC220V(160V ~ 265V) /AC110V90 ~130V/DC48V38 ~ 58V

Consumption

≤ 50w

Working temperature

-5℃ ~+42℃

Storage temperature

-30℃ ~ +70℃

Maximum working relative

humidity



Max 95% non-condensing

Size

400(W)*482(L)*44(H)mm

Package size1pc

595(W)*490(L)*120(H)mm

Package size2pcs

595(W)*490(L)*230(H)mm
