● The use of high-performance DFB lasers of international famous brands has narrow spectral lines, good linearity, and high output power.
● The advanced multi-frequency RF predistortion technology uses RF power automatic processing technology to ensure the CTB, CSO, and C/N specifications are always at optimal values.
● The 32-bit ARM processor can efficiently coordinate the working status of each module and accurately monitor and control each operating parameter.
● Laser temperature stabilization circuit (ATC) and optical power output stabilization circuit (APC) ensure optimal laser performance.
● The dual-module structure is reserved to increase the functions of light emitting, EDFA, light collection, RF switch, and other functions.
● Modular structure, easy to expand the function of equipment and maintenance.
● Standard network management interface, in line with SNMP network management protocol.

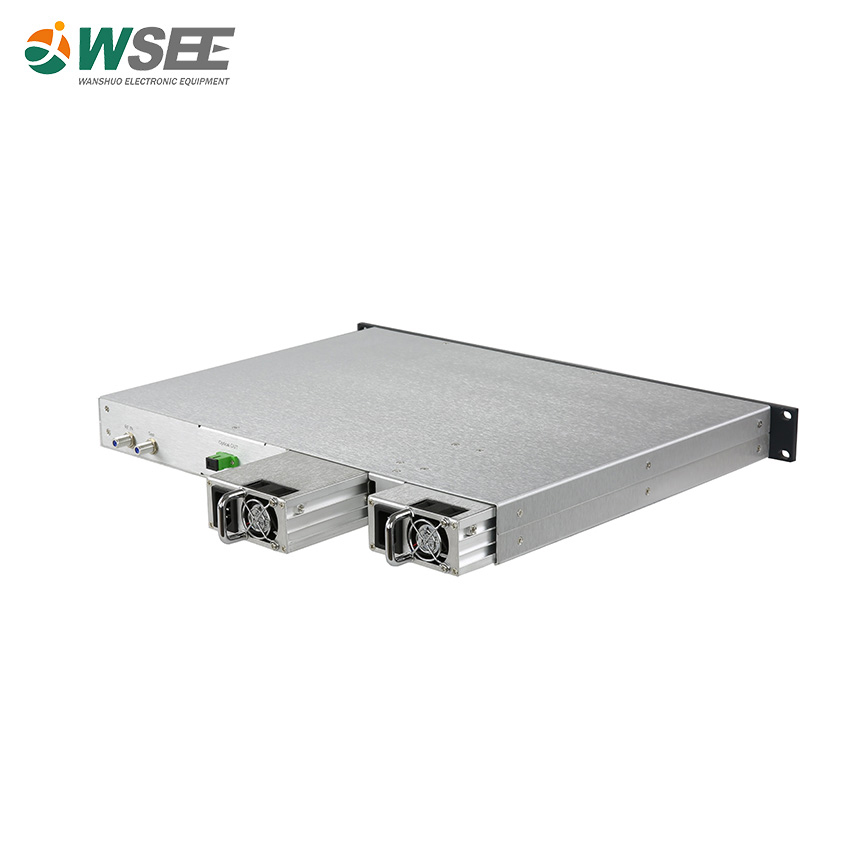

● The power supply can realize dual power hot backup, snap-type fixed, one-touch pull. Easy to operate, firmly fixed.
Output optical power
Direct optical intensity modulation
RF input level
MGC adjustment range
RF input impedance
Input reflection loss
Carrier to noise ratio(C/N)
AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 - 58V)
Total power consumption
95% max, no condensation
FCL size (1 set package )
FCL size (2 sets package )
3kgs(single power supply)
Gross weight（1 set package）
4kgs(single power supply)
Gross weight (2 sets package)
